The latest model of legendary SPIDER mowers will surpass what you have expected from professional mowers so far. Thanks to the more powerful Kawasaki engines with EFI (Electronic Fuel Injection) technology, you will hardly come across a terrain that SPIDER couldn't handle.
The SPIDER ILD02 EFI achieves a productivity of up to 8,500 m2 per hour. In other words – it can match up to 16 brushcutters or a tractor with a cutting arm.
In difficult terrain, such as overgrown grass or steep slopes, it achieves up to 30% higher productivity compared to the SPIDER ILD02 with a carburetor engine.
The unique mowing system in SPIDER mowers is based on the principle of quality mulching, thanks to which it is not necessary to collect the cut material and dispose of it in a complicated way. The finely mulched grass is evenly distributed during mowing over the lawn serving as a valuable source of nutrients. In addition, the operator can fully concentrate on mowing and not waste valuable time with a collection bin.

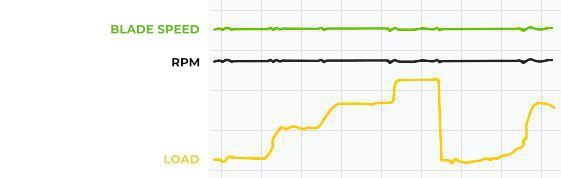

To achieve perfect mowing results, it is crucial that the blade speed remains stable even when mowing thick and tall grass. The electronically controlled fuel metering on the SPIDER ILD02 EFI ensures that the exact amount of fuel enters the combustion chambers ensuring a constant blade speed. Therefore, the mower does not slow down even while mowing thick and tall grass or working on a steep slope.
The SPIDER ILD02 EFI mower is equipped with 4 rotary blades, which are made of a special HARDOX alloy, guaranteeing the necessary strength and flexibility in the event of an accidental impact with a solid obstacle.
SPIDER mowers are versatile for mowing all types of lawns - from flat, sloping to hard-to-reach terrains.
In addition, the SPIDER ILD02 EFI mower can be used in the winter months with the help of a special snow plow for removing snow in car parks, sidewalks and other roads.
he SPIDER ILD02 EFI mower is the only mower on the market that is certified for mowing slopes with an inclination of 60 °.
With the help of a patented stabilizing winch, the mower is totally safe on a slope while at the same time, thanks to its low weight, very gentle on the ground surface.
25.5 HP/ 19 kW
164 × 142 × 92,5 cm
0 - 8 kph
9 - 14 cm / 7 - 12 cm
SPIDER ILD02 EFI mowers are powered by the latest generation of Kawasaki engines with electronically controlled direct fuel injection technology.
The range of the SPIDER slope mower remote control is 100 meters and the controller's battery life lasts up to 20 hours.
The ergonomically designed remote control contains controls for:
The hydrostatic wheel drive system ensures a smooth change in machine speed while maintaining an internal combustion engine optimal mode.
The combination of sensitive speed and direction control guarantees precise maneuverability, high operating efficiency and last but not least, high safety
The patented machine travel construction allows for omnidirectional mowing without the need for complicated maneuvering. We call this type of movement a "dance step" and it can simply be described as all-wheel drive forwards and backwards in combination with unlimited smooth rotation of all wheels in the full range of 360 °. On a field with rapidly changing inclines and where other machines have difficulty moving, the SPIDER mower is completely unbeatable with its original dance step.
The SPIDER ILD02 EFI is equipped with a skid-steering option. This method of control allows the machine to rotate on its vertical axis and thus simplifies the handling of the machine.
To transport the SPIDER ILD02 mower, a special trailer can be towed behind a vehicle, which includes integrated, easily retractable loading ramps and a system to secure the machine against movement during transport.
However, a standard trailer can also be used for transport.
|performance||25.5 HP / 19.0 kW (SAE J1995)|
|fuel tank||16 l // 4,2 gal|
|fuel type||unleaded petrol|
|Oil tank||9 l // 2,4 gal|
|speed||0 – 8 kph // 0 – 5 mph|
|steering||360°, 4 x 4, skid steering|
|wheels||16 x 6.50-8|
|Mowing width||123 cm // 48,5 in|
9 – 14 or 7 – 12 cm // 3,5 – 5,5 or 2,8 – 4,7 in
|Productivity||8 500 m2/h // 2,1 acres/h|
|average fuel consumption||3,8 l/h // 1 gal/h|
|Slope accessibility||60° (without the winch 41°)|
|dimensions (L×W×H)||164 × 142 × 92,5 cm|
With the help of a snow plow, the SPIDER ILD02 can also be used during the winter. The snow plow is designed to remove snow on sidewalks, parking lots and other areas up to a height of 40 cm.
The plow is equipped with a guide wheel, adjustable guides, a rubber blade and a tilting mechanism with springs, which reduces the mechanical stress when the plow hits a solid obstacle.
|PLOWING WIDTH||1 400 mm|
|PLOWING ROTATION ANGLE||3 mechanically adjustable positions (+-30°)|
|MAXIMAL SLOPE ANGLE||15°|
|PLOW WEIGHT||33 kg|
The specially designed trailer for transporting SPIDER mowers is an ideal way of transporting the machine. The trailer is equipped with integrated ramps and a system to secure the machine against movement.
There is also a trailer version with brake and a lockable plastic tool box.
There are also separate loading ramps, which are available in 2 lengths - 150 and 200 cm. Ramps are suitable for most trucks, trailers and vans.
Standard straight blades are suitable for all applications.
The blades are made of HARDOX steel, which is strong enough and flexible at the same time, greatly helping in case of an accidental impact on a solid obstacle.
Specially shaped blades can be used for even more efficient mulching and excellent cutting quality. The S-shaped blades are especially suitable for mowing young and fine grass.

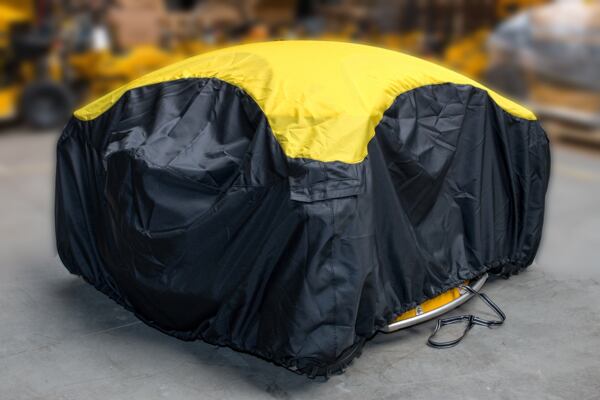

For machine storage, we recommend a custom fitter cover, which was designed to effectively protect the SPIDER mower from dirt and moisture.
